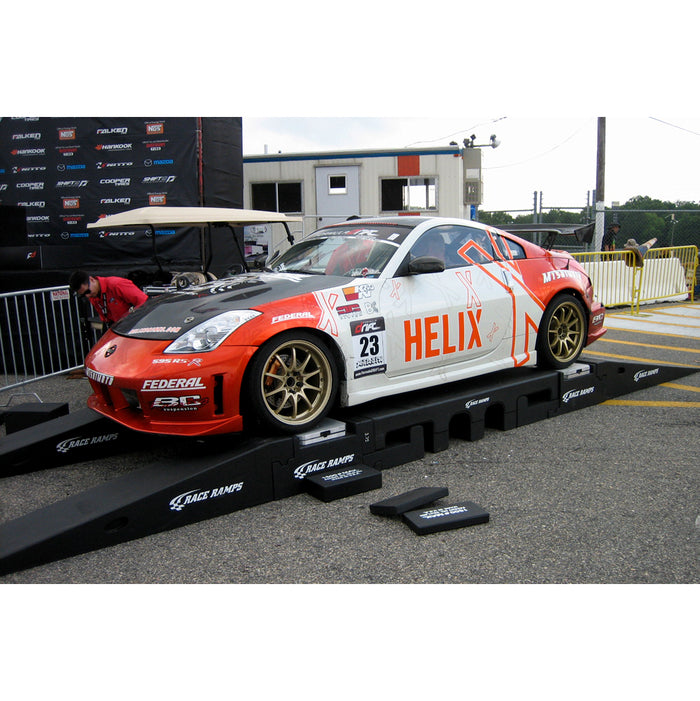

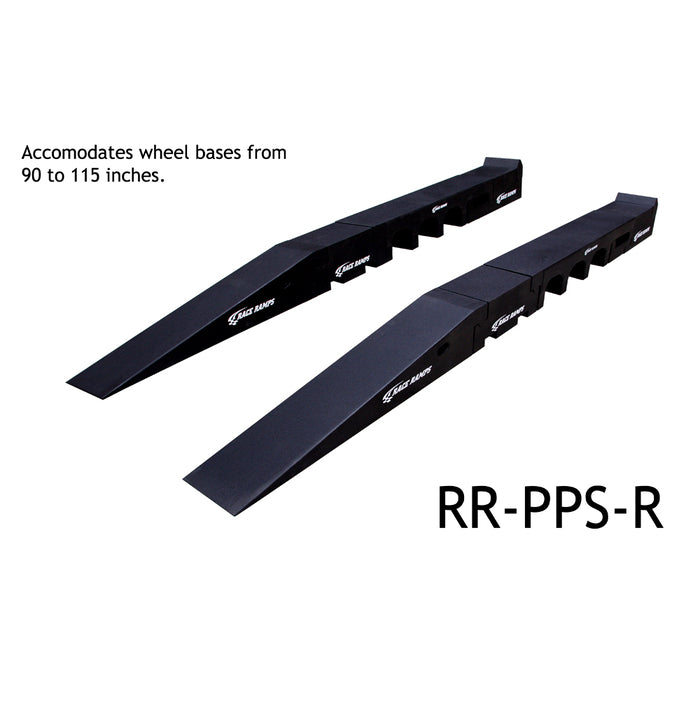

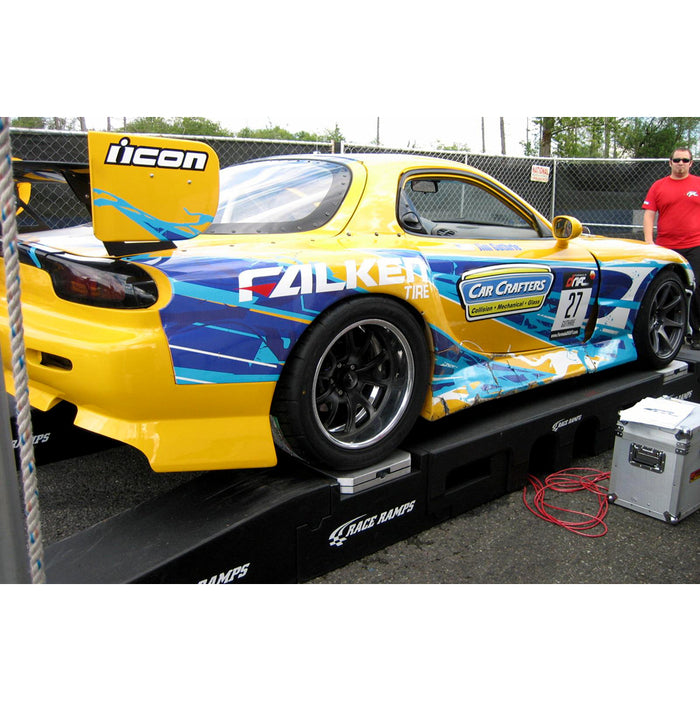

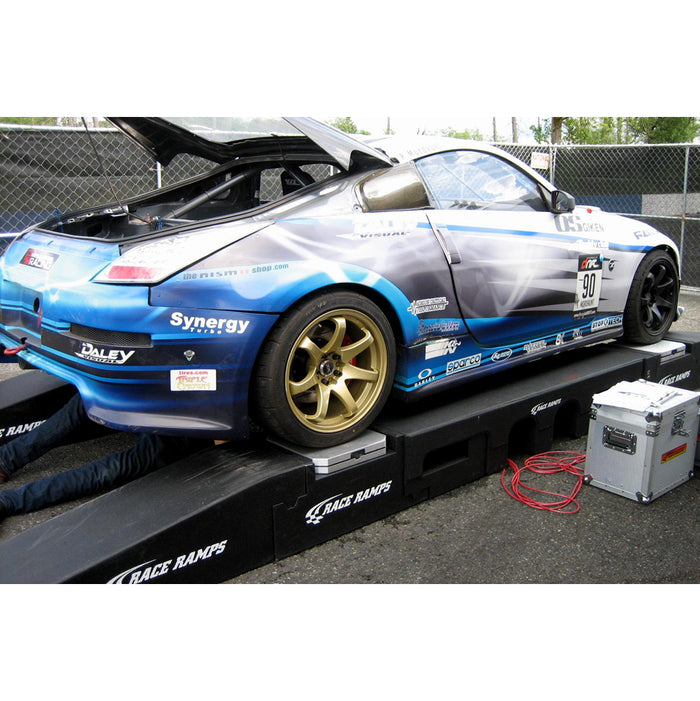

Portable Pit Stop Ramps elevate vehicles for better body height and safer underbody access. The multi-piece design is easy to assemble with pieces that weigh no more than 40 pounds. The ramp platform provides 14 inches of lift and can accommodate a wheel base of 90 to 115 inches and tires up to 14 inches wide. The ramps are designed with a 10-degree approach angle, and the racer model comes with 15 inch cutouts on top for use with scales. The entire ramp system can support up to 6,000 pounds.
Made in the USA (Y/N) Y
Product Length (inches) 220
Product Width (inches) 16
Product Height (inches) 14
Ramp Angle of Approach (degrees) 10.4
Weight Capacity (lbs per ramp) 1500
Vehicle Weight Capacity (lbs) 6000
Sold in (single, pairs, set) set
