Sonetics

The Sonetics Starter System Kit

The Sonetics Starter System Kit

SCH305.V2

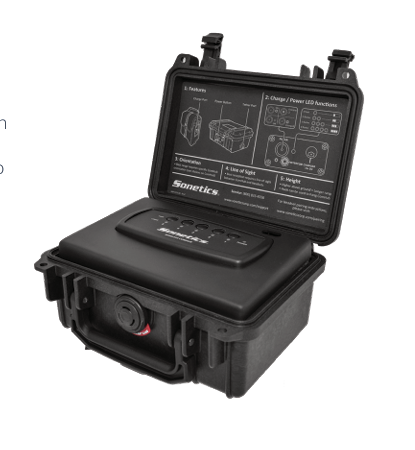

WIRELESS DECT7 PORTABLE COMHUB

The Sonetics Wireless ComHub is the heart of a Sonetics Portable Wireless Communication System. ComHubs support full duplex, conference call-like digital communication with up
to five Sonetics APEX Wireless Headsets. Radio PTT-capable headsets can be configured to transmit on a portable radio via the ComHub.

For situations that require a large number of connected users, such as education or tour
groups, Broadcast Mode supports up to 100 users. Tethering your SCH305-BT with a
second ComHub (SCH305 or SCH310T) lets you connect two teams in a single talk group.

The DECT channel allows users to talk on up to five different channels. DECT7 wireless
operates on the 1.9GHz band to provide secure, interference-free communication. With
internal and external antennas, the ComHub Base Station configures itself for the best
reception and a line-of-sight range of up to 1,600 feet.

Sonetics communication systems includes a 1-Year factory warranty, free firmware updates & free shipping within the lower 48 states.

THE STARTER KIT INCLUDES:
1 pc. SCH305 and 2 pcs. APX377

$4,325.00 USD
$4,325.00 USD
Sale Sold out

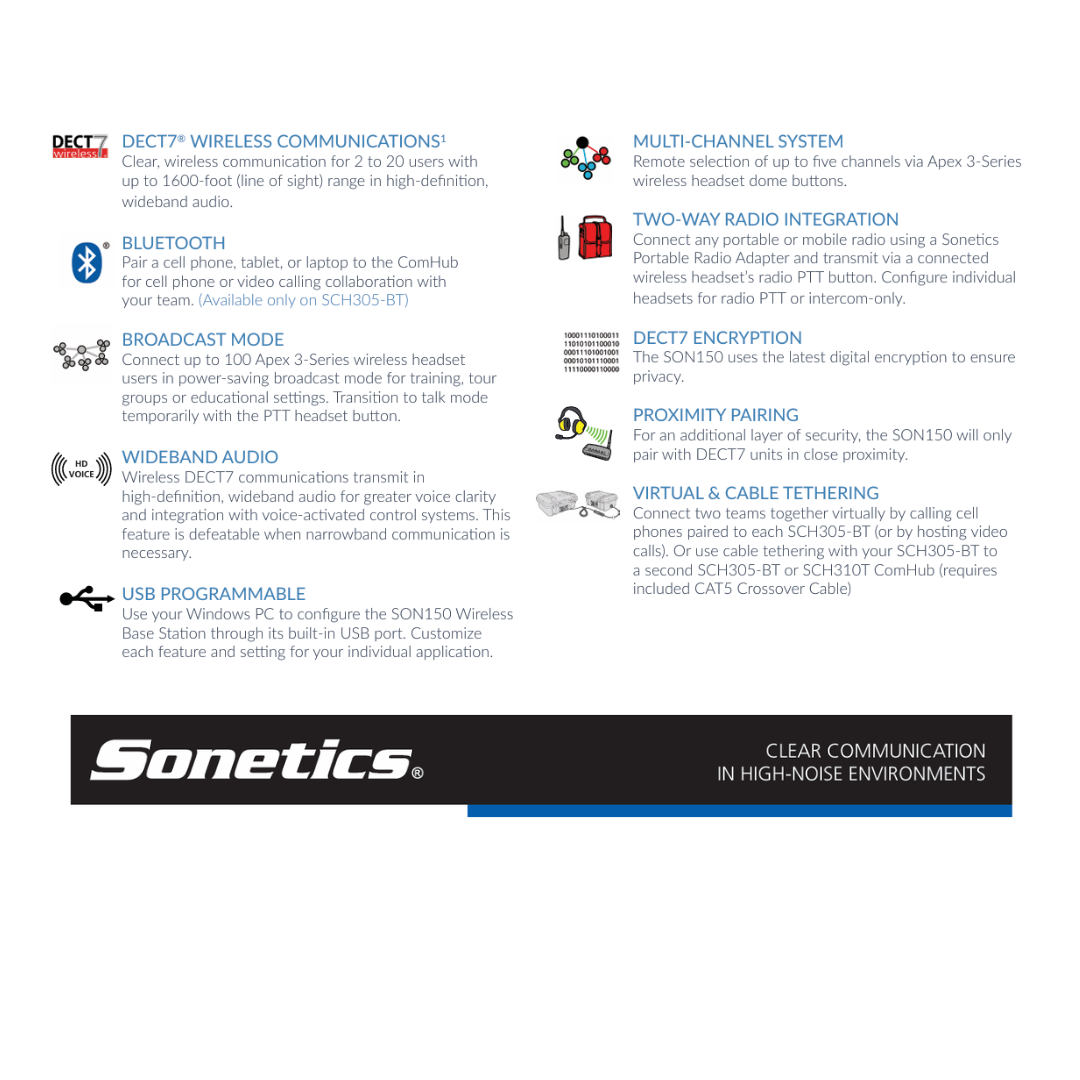

Product Features

WIRELESS DECT7 COMMUNICATIONS
Full-duplex team communication. just like a mobile conference call
Connect up to five (5) Sanetics DECT6 or DECT7 wireless headsets
Cip to 1.6CO line-of-sight range to the wireless base station
Interference-free communication
35-bit DECT digital encrvptian ensures security and privacy
64-bit audio stream encryption
Backward compatible with first generation Sonetics DECT and DECT6 wireless headsets and belt packs

BLUETOOTH 4.0 only on SCH305-BT)
Pair cell phones. tablets or laptops for video conference calling
Reach the entire team for increased collaboration and productivity

TWO-WAY RADIO INTEGRATION
Connect any portable two-way radio with a Sonetics Portable Radio Adapter
Transmit using a Sonctics wireless headset's radio PTT button
Configure individual headsets for radio transmit or intercom only

CABLE TETHERING
Connect two teams of up to 20 users in a single talk group
Tether to SCH305. SCH305-BT, or SCH310T (requires included CATS Crossover Cable)

MULTI-CHANNEL SYSTEM
Select from five separate channels for multiple teams
Remote channel selection via paired APX377 or APX379 wireless headsets

BROADCAST MODE
Connect up to 100 wireless headsets in this listen-only. pawer-saving mode
Transition momentarily to an open talk position: audio tone confirmation

WIDEBAND AUDIO
High-definition. wideband transmission format
Superior clarity for voice-activated control system integration
Defeatable when narrowband communication is required

PROXIMITY PAIRING
For additional security, SON150 only pairs with DECT7 units in close proximity

Specifications

SCH305 & SCH305-BT SPECIFICATIONS:
PHYSICAL
Length: 8.2 in Width: 6.1 in Height: 3.9 in
Weight'. 2.75 lbs. (SCH30S-BT 2.8 lbs.)

POWER
Voltage Input: 5 VDC ta 16 VDC
Maximum Current Input: 1.2A @ 12V

ENVIRONMENTAL
IP Rating: IP67
Operating temperature -22 OF (-300C) to 1400F (6000
Storage temperature -400F (-400C) to +1850F (+830C)

SON150 BASE STATION SPECIFICATIONS:
FCC
FCC D: V9N9503257CDV1
Part 15: All Models

SAE
Vibration per J1455. Sec. 4.9
Conducted Immunity per J 1113-11
Electrostatic Discharge per J 1113-13
Radiated Emissions per Jl 113-41
Radiated Immunity: ISO 11432-2

MIL
Humidity per MIC-STD BIOF and 8106
Temperature Shock per MIL-STD BIOF & 8IOG

ISO
Conducted Transients per 7637-2
Quality Management System ISO 9001:2015
INDUSTRY CANADA
IC UPN: 7895A-9503257CO

DECT SPECIFICATIONS:
COMMON DECT SPECIFICATIONS
Carrier Spacing: 1.724 MHz
Time Slots: 2 x 12 (up and down stream)
Channel Allocation: Dynamic
Encryption: DECT Standard Cipher with 35-bit initialization vector
and 64-bit audio stream encryption
Audio Bandwidth: 300 Hz to 3.4 kHz, Narrow Band. G. 726 compression
Audio Bandwidth: 50 Hz to 7 kHz Widc Band. G.722 compression

REGION 1 SPECIFICATIONS
Authorized for use in: Canada. LISA
Frequency Bandwidth: 1919.808 MHz to 1930.176 MHz
Number of Carriers: 5
Total Time Slots: 60 in G. 726 (narrow band) / 30 in G. 722 (wide band)
Average Output Power: 4mW I Maximum Output Power: 103mVV
Range (line of sight}: 1.600 feet maximum

Inclusions

THE STARTER KIT INCLUDES:
1 pc. SCH305 and 2 pcs. APX377
(no case bag)
